Royal Air Force Typhoon

.

Pictures taken from the Bournemouth Air Show

.

RedEffect72dpi-4

.

‘The Red Effect’ by Harvey Black – Available now. The Cold War that became a Hot War.

.

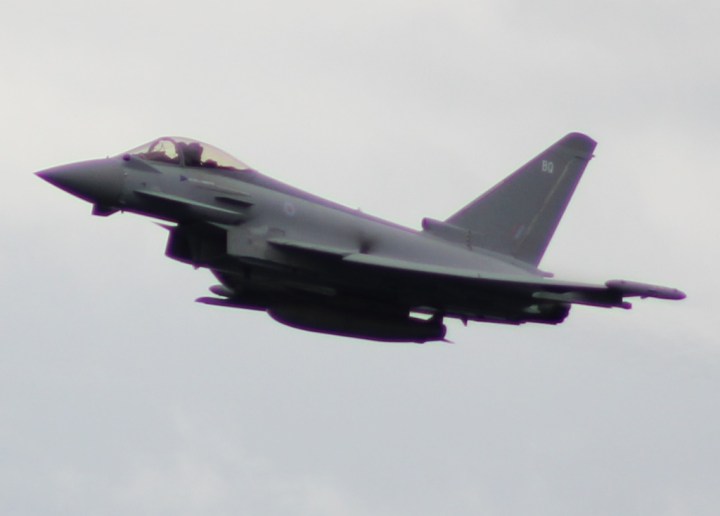

Harvey Black 084

Eurofighter Typhoon

.

Harvey Black 081 (1)

Multirole Fighter

.

Harvey Black 081

In service with the RAF

.

Harvey Black 083

Twin-engined.

.

Harvey Black 080 (1)

Produced in 1994.

.

Harvey Black 092

Approximately 100 in service in the RAF.  A further 60 on order.

.

Harvey Black 082 (1)

Twin EJ200 engines.

.

Harvey Black 084

Speed Mach 2+

.

Harvey Black 087

Absolute ceiling approximately 20,000 metres.

.

Harvey Black 080

Armament: 1 x 27mm cannon, 8 x under-wing hardpoints, 5 x under-fuselage pylon stations. Payload 7,500 kg. Air-to-air and Air-to-surface missiles and bombs.

.

Harvey Black 081

Canard-delta wing.

.

Harvey Black 079

Range 2,900 kilometres.

.

Harvey Black 086

Cost £65 million each.

.

Harvey Black 085

Typhoon

.

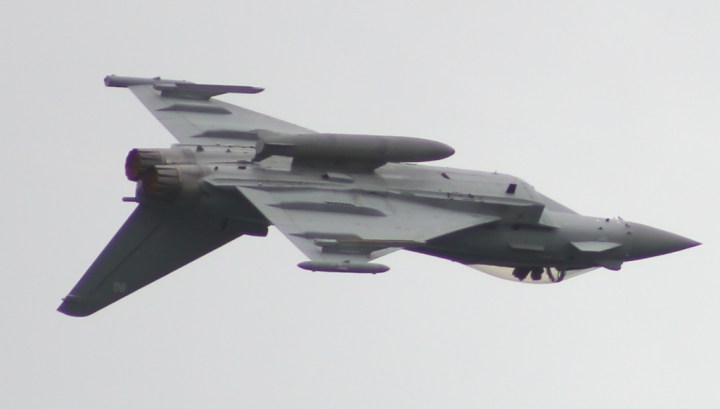

Harvey Black 079 (1)

Typhoon

.

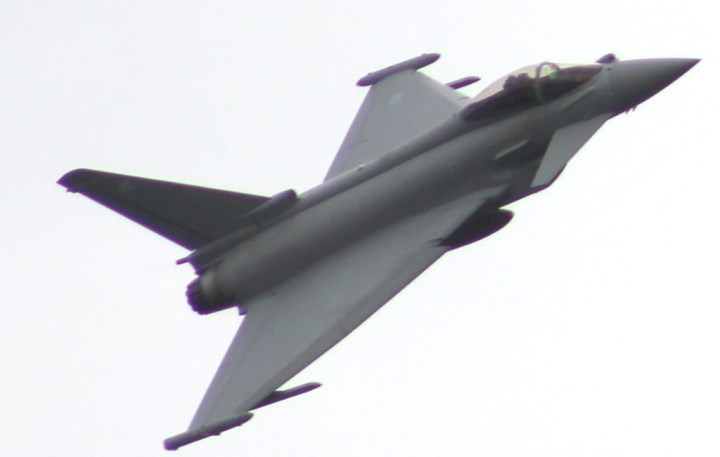

Harvey Black 082

Typhoon

.

Weather not brilliant, will try for some improved shots tomorrow.



Photographs copyrighted to Harvey Black.

Site and content is copyrighted to Harvey Black.

.

The Black Effect. The day the Cold War turned Hot. Part 1.

.

TBE revised - FOR SCREEN-1

The Black Effect

The first novel in my ‘Cold War’ trilogy, The Red Effect, published by SilverWood Books, is now available. Thoroughly enjoyed writing it, as i do with all my novels. There will be three books in total, covering the hypothetical invasion of West Germany, the Federal Republic of Germany, by the Warsaw Pact in the mid 1980’s. Book 1, ‘The Red Effect’, encompasses part of the intelligence build up leading to the initial Warsaw Pact strike against the NATO forces lined up against them. The purpose of the next few posts is to give the reader some additional background information to enhance their reading experience.

.

RedEffect72dpi-4

.

‘The Red Effect’ by Harvey Black – Available now. The Cold War that became a Hot War.

The Cold War era started very soon after the end of the second world war, when the communist east, led by the Soviet Union, and the Western world, led by the United States and its NATO allies, faced each across what became known as the ‘Iron Curtain’.

.

.

The perception of a potential Third World War, was generally one of a nuclear war. It may have come to that. In reality we will never know. But, one scenario is that of a conventional war. The massed forces of the Warsaw Pact against the supposedly technically superior, but weaker, NATO armies, that may well have escalated into a nuclear exchange.

The Red Effect ended with a pre-emptive conventional military strike against the Federal Republic of Germany by the Warsaw Pact.  NATO and the West’s lethargy during the 80s was well known. The Soviet Union’s major military exercises, held at least once a year, involved tens of thousands of troops, going through scenarios that incorporated an attack towards the West, under the premise that it was purely for the defence of the Soviet Union and its satellites. The Black Effect continues the trilogy that explores the what if…..

.

.

TBE revised - FOR SCREEN-1

The Black Effect front cover.  The strap-line will be changed at some point. The novel is due out in four weeks time!



The draft Blurb is below.

An economy on the verge of collapse, demands from their allies for funding to continue the expansion of communism, and a conventional Army, Navy and Air Force costing the country 20% of its GDP… The Soviet Union is in trouble. Where should they turn for a solution?

Their answer: the capitalist West. On the 4th July 1984, the Soviet Union and the Warsaw Pact launched a massive preemptive conventional strike against the West, sending the NATO forces reeling.

Follow Jacko and Bradley and their allies as they fight off the Soviet Union. Can the NATO forces recover and hold their ground? Will the Soviet Union succeed? Or will it end in an outright defeat? Follow the series of gripping events in The Black Effect, the second installment in Harvey Black’s Cold War trilogy.

The Blue Effect is already poised at the tip of my pen…..

Site and content is copyrighted to Harvey Black.

.

Cold War Kit. Part 4. British Tracked Rapier, Surface to Air Missile.

.

The first novel in my ‘Cold War’ trilogy, The Red Effect, published by SilverWood Books, is now available. Thoroughly enjoyed writing it, as i do with all my novels. There will be three books in total, covering the hypothetical invasion of West Germany, the Federal Republic of Germany, by the Warsaw Pact in the mid 1980’s. Book 1, ‘The Red Effect’, encompasses part of the intelligence build up leading to the initial Warsaw Pact strike against the NATO forces lined up against them. The purpose of the next few posts is to cover some of the Iconic pieces of equipment that would have played a part, should the Cold War have turned Hot.

. RedEffect72dpi-4 .

‘The Red Effect’ by Harvey Black – Available now. The Cold War that became a Hot War.

The Cold War era started very soon after the end of the second world war, when the communist east, led by the Soviet Union, and the Western world, led by the United States and its NATO allies, faced each across what became known as the ‘Iron Curtain’.

The perception of a potential Third World War, was generally one of a nuclear war. It may have come to that. In reality we will never know. But, one scenario is that of a conventional war. The massed forces of the Warsaw Pact against the supposedly technically superior, but weaker, NATO armies, that may well have escalated into a nuclear exchange. But a pure conventional war was just as likely.

.

Harvey Black 079

Tracked Rapier, a British Cold War surface-to-air missile launcher.  It is still in service today.

.

Harvey Black 079 (1)

The Rapier SAM entered service in 1971 and eventually replaced most of the British Army and Royal Air Force SAM systems. The original systems came on wheeled launchers, towed by Land Rovers. There would be two vehicles, the Fire Unit Truck and the Detachment Support Vehicle.

.

Harvey Black 080

Development started on the Tracked version of the Rapier in 1978, deployed in 1983.

.

Harvey Black 081

Capable of carrying four surface-to-air missiles on each launcher.

.

Harvey Black 082

Parabolic antenna for sending guidance commands to the missiles.

.

Harvey Black 083

The missile has a fragmentation explosive close proximity warhead.

.

Harvey Black 084

The large cylindrical unit, containing the surveillance radar and Identification friend or foe (IFF) at the top.

.

Harvey Black 085

Mounted on an M548 chassis.

.

Harvey Black 086

The chassis is the cargo version of the well known M113 armoured personnel carrier.

.

Harvey Black 087

The lower part of the cylinder contains the guidance computer and radar transmitter and receiver electronics at bottom.

.

Harvey Black 088

The solid fuel rocket could power the missile to a speed of Mach 2.5.

.

Harvey Black 089

The Optical-Tracker would be operated from the left side of the crew cabin.

.

Harvey Black 090

On the right of the crew cabin you would find the driver and tactical controller.

.

Harvey Black 092

There were smoke-dischargers on each corner of the vehicle.

.

Harvey Black 093

The missile had a height ceiling of 3,000m.

.

Harvey Black 094

In the early 80s, 1 British Corps had 24 x Tracked Rapier and 24 x towed missile systems.

.

Harvey Black 095

During the Cold War, 1 British Corps and its respective divisions were very weak in respect to air defence.

.

Harvey Black 096

From movement to firing took only 30 seconds with the tracked Rapier, as opposed to the towed versions firing time of 15 minutes.

.

.

Cold War Kit. 079 (1)

Rory, who had just purchased my Novel, The Red Effect, posing in front of my stand at the War & Peace show. He is wearing his Second World War Soviet uniform, carrying the iconic PPS machine gun.

i hope this has given you a further insight into what kit was around during the Cold War in the 80s.

The equipment Photographs and Blog are copyrighted to Harvey Black.

. HarveyBlack-Red Effect150313

‘The Red Effect’ by Harvey Black – Kindle and Paperback version out now! The Cold War that became a Hot War. The Black Effect due out Mid September.

.

Cold War Kit. Part 3. Soviet BMP-1 Mechanised Infantry Combat Vehicle.

.

The first novel in my ‘Cold War’ trilogy, The Red Effect, published by SilverWood Books, is now available. Thoroughly enjoyed writing it, as i do with all my novels. There will be three books in total, covering the hypothetical invasion of West Germany, the Federal Republic of Germany, by the Warsaw Pact in the mid 1980’s. Book 1, ‘The Red Effect’, encompasses part of the intelligence build up leading to the initial Warsaw Pact strike against the NATO forces lined up against them. The purpose of the next few posts is to cover some of the Iconic pieces of equipment that would have played a part, should the Cold War have turned Hot.

. RedEffect72dpi-4 .

‘The Red Effect’ by Harvey Black – Available now. The Cold War that became a Hot War.

The Cold War era started very soon after the end of the second world war, when the communist east, led by the Soviet Union, and the Western world, led by the United States and its NATO allies, faced each across what became known as the ‘Iron Curtain’.

The perception of a potential Third World War, was generally one of a nuclear war. It may have come to that. In reality we will never know. But, one scenario is that of a conventional war. The massed forces of the Warsaw Pact against the supposedly technically superior, but weaker, NATO armies, that may well have escalated into a nuclear exchange. But a pure conventional war was just as likely.

.

Cold War Kit. 079

Soviet BMP.

.

Cold War Kit. 080

The BMP is an amphibious mechanised Infantry Combat Vehicle. The track, using the hydrodynamic fairings, would be used to propel the BMP through the water at about 5 miles per hour.

.

Cold War Kit. 081

A top road speed of about 45mph.

.

Cold War Kit. 082

This model is without the standard 73mm gun and Sagger missile.

.

Cold War Kit. 083

Over 20,000 BMPs were built.

.

Cold War Kit. 085

Suspension was individual torsion bar with hydraulic shock absorbers on the 1st and 6th road wheel.

.

Cold War Kit. 086

It weighed 13 tons and carried a crew of three plus eight motor-rifle troops.

.

Cold War Kit. 087

There are two airtight doors at the rear. They also contain fuel tanks.

.

Cold War Kit. 088

There are two vision blocks at the rear and one firing-port.

.

Cold War Kit. 089

The hydrodynamic fairings can clearly be seen on the upper rear of the track covers.

.

Cold War Kit. 090

Along each side of the troop compartment, there are four firing ports.

.

Cold War Kit. 091

The two firing-ports to the front, would be used by say a PKM, a light machine gun. The other six would be for the soldiers AK-47/74s.

.

Cold War Kit. 092

There would be a combination fume extractor and cartridge deflector available at each firing port. This could be clipped on to an individual’s weapon.

.

Cold War Kit. 093

Each firing-port had a vision-block above it.

.

Cold War Kit. 094

A padded bench seat on the left-hand side.

.

Cold War Kit. 095

Space was very tight.

.

Cold War Kit. 096

There were four D-shaped hatches in the roof of the troop compartment that could be opened from the inside.

.

Cold War Kit. 097

Padded bench on the right-hand side, looking towards the gunner’s position.

.

Cold War Kit. 098

Vision-blocks on the right-hand side.

.

Cold War Kit. 099

Vision-blocks and overhead hatches on the left-hand side.

.

Cold War Kit. 101

A D-shaped hatch near the turret.

.

Cold War Kit. 104

This BMP has had its 73mm gun removed. Now looks very similar to that of a BRDM-2 reconnaissance vehicle.

.

Cold War Kit. 105

Looking down at the driver’s station,  front, left-hand side.

.

Cold War Kit. 106

Driver’s position and steering yoke in front of the commander.

.

Cold War Kit. 107

Drivers controls and vision-block.

.

Cold War Kit. 109

Looking towards the Commander’s area.

.

Commander’s area.

.

Cold War Kit. 111

The driver has two periscope vision-blocks and a binocular vision device.

.

Cold War Kit. 112

Looking back from the commander’s position.

.

Cold War Kit. 079 (2)

Commander’s position

Cold War Kit. 113

Driver’s binocular vision device.

.

Cold War Kit. 080 (1)

Driver’s hatch.

Cold War Kit. 115

The four D-shaped hatches can be seen open to the rear.

.

Cold War 11 087

BMP-1 showing the standard configuration of a 73mm gun and a Sagger anti-tank missile mounted on a rail above it..

.

Cold War Kit. 079 (1)

Rory, who had just purchased my Novel, The Red Effect, posing in front of my stand at the War & Peace show. He is wearing his Second World War Soviet uniform, carrying the iconic PPS machine gun.

i hope this has given you a further insight into what kit was around during the Cold War in the 80s.

The equipment Photographs and Blog are copyrighted to Harvey Black.

. HarveyBlack-Red Effect150313

‘The Red Effect’ by Harvey Black – Kindle version out now! The Cold War that became a Hot War. Paperback edition imminent.

.
