The Cold War era started very soon after the end of the second world war, when the communist east, led by the Soviet Union, and the Western world, led by the United States and its NATO allies, faced each across what became known as the ‘Iron Curtain’.

The perception of a potential Third World War, was generally one of a nuclear war. It may have come to that. In reality we will never know. But, one scenario is that of a conventional war. The massed forces of the Warsaw Pact against the supposedly technically superior, but weaker, NATO armies, that may well have escalated into a nuclear exchange. But a pure conventional war was just as likely.


Cold War Kit. 079

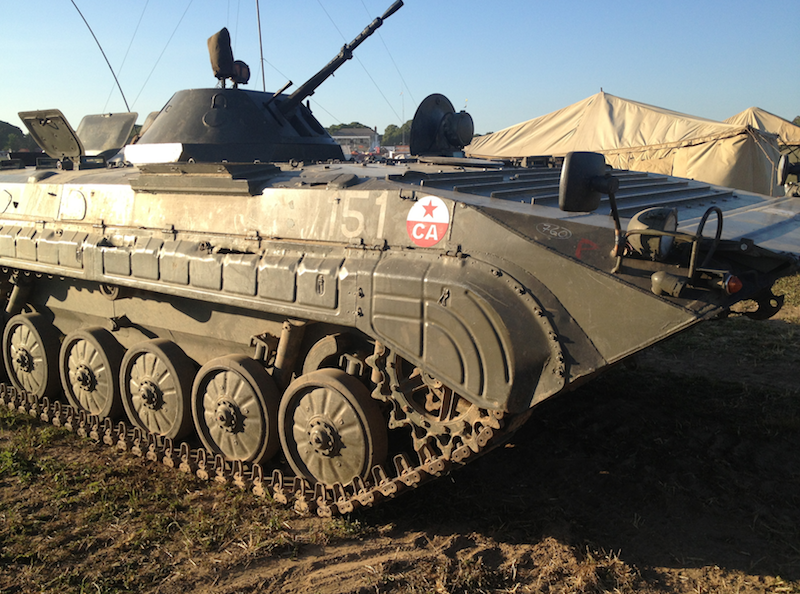

Soviet BMP.


Cold War Kit. 080

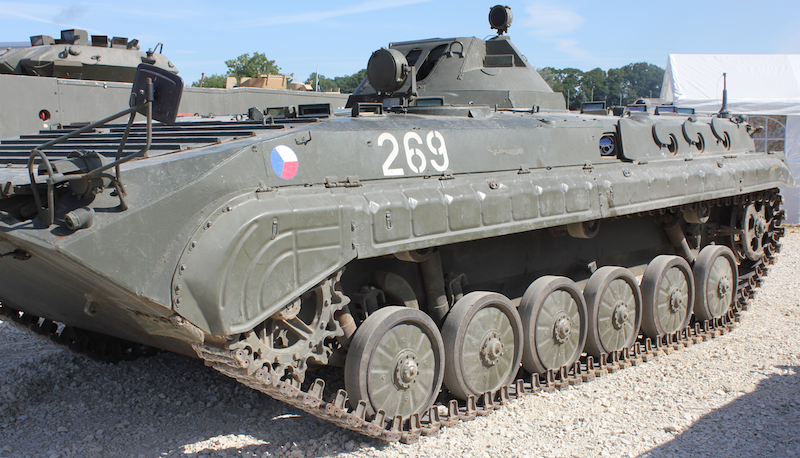

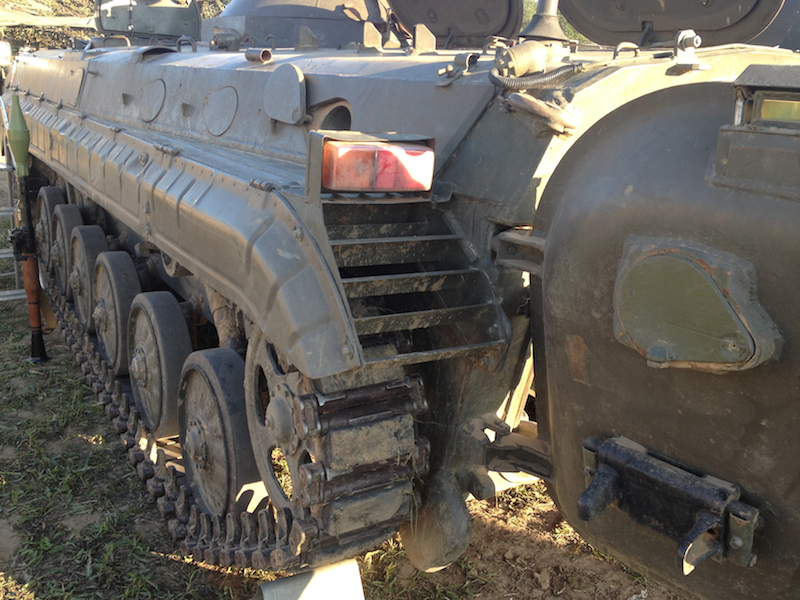

The BMP is an amphibious mechanised Infantry Combat Vehicle. The track, using the hydrodynamic fairings, would be used to propel the BMP through the water at about 5 miles per hour.


Cold War Kit. 081

A top road speed of about 45mph.


Cold War Kit. 082

This model is without the standard 73mm gun and Sagger missile.


Cold War Kit. 083

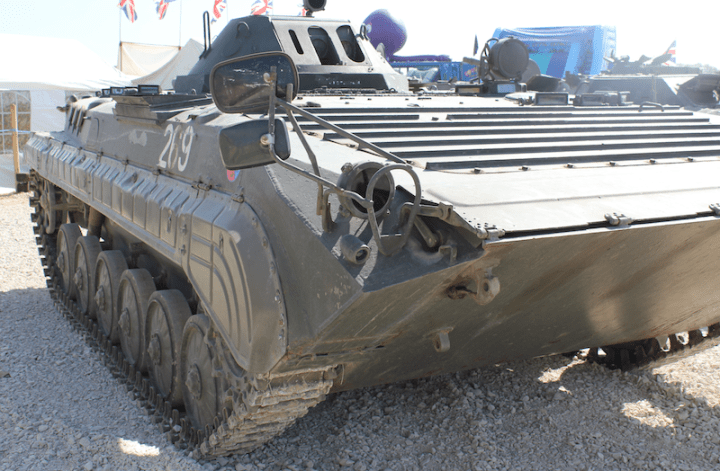

Over 20,000 BMPs were built.


Cold War Kit. 085

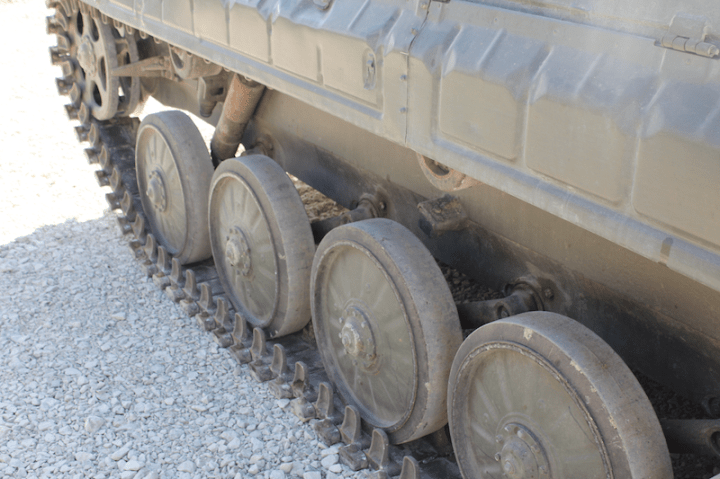

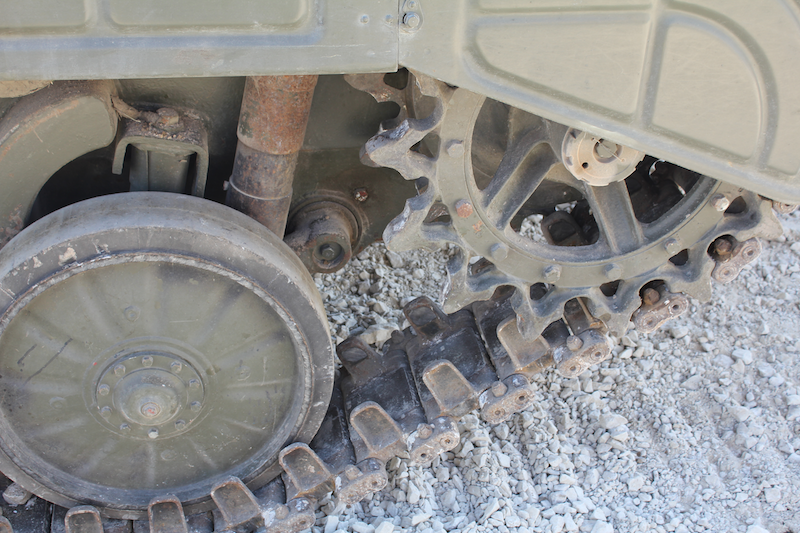

Suspension was individual torsion bar with hydraulic shock absorbers on the 1st and 6th road wheel.


Cold War Kit. 086

It weighed 13 tons and carried a crew of three plus eight motor-rifle troops.


Cold War Kit. 087

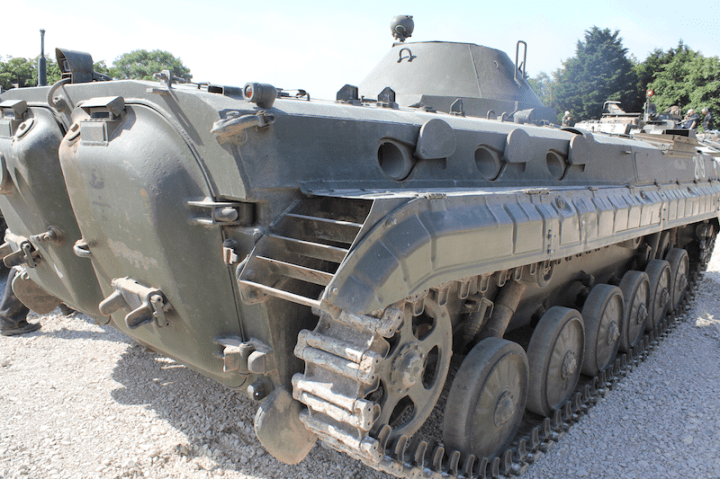

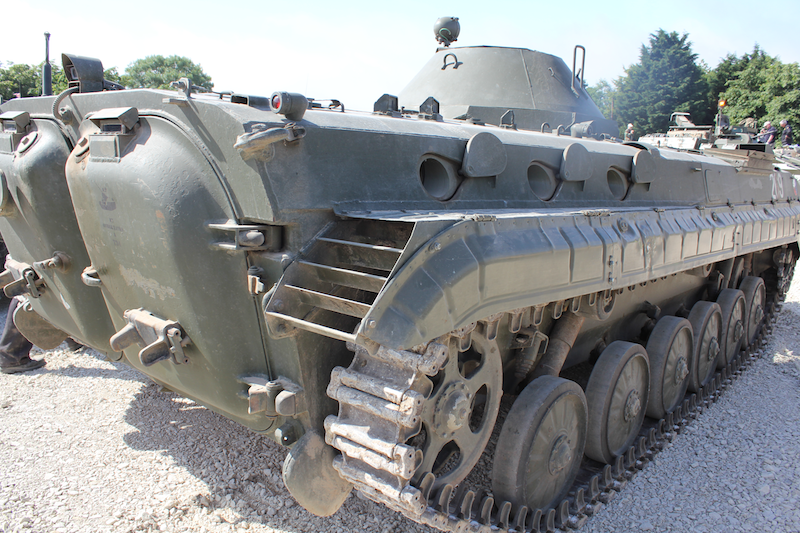

There are two airtight doors at the rear. They also contain fuel tanks.


Cold War Kit. 088

There are two vision blocks at the rear and one firing-port.


Cold War Kit. 089

The hydrodynamic fairings can clearly be seen on the upper rear of the track covers.


Cold War Kit. 090

Along each side of the troop compartment, there are four firing ports.


Cold War Kit. 091

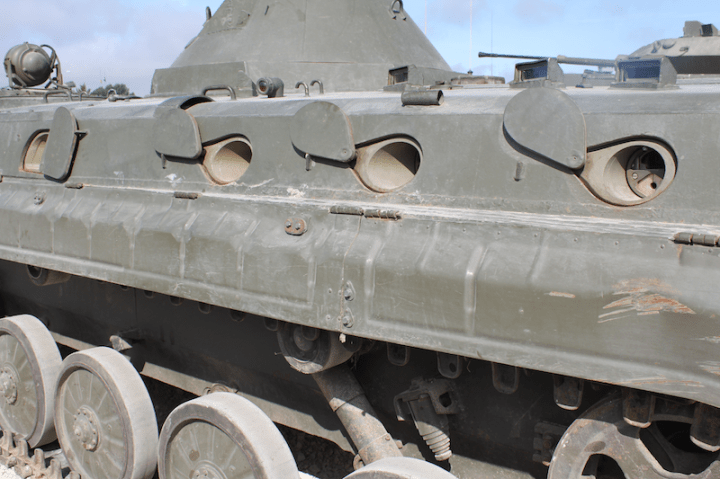

The two firing-ports to the front, would be used by say a PKM, a light machine gun. The other six would be for the soldiers AK-47/74s.


Cold War Kit. 092

There would be a combination fume extractor and cartridge deflector available at each firing port. This could be clipped on to an individual’s weapon.


Cold War Kit. 093

Each firing-port had a vision-block above it.


Cold War Kit. 094

A padded bench seat on the left-hand side.


Cold War Kit. 095

Space was very tight.


Cold War Kit. 096

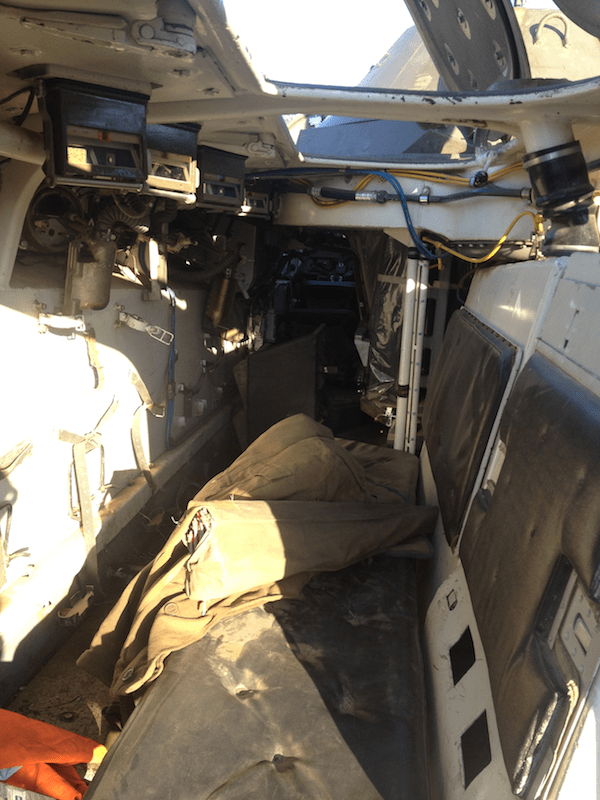

There were four D-shaped hatches in the roof of the troop compartment that could be opened from the inside.


Cold War Kit. 097

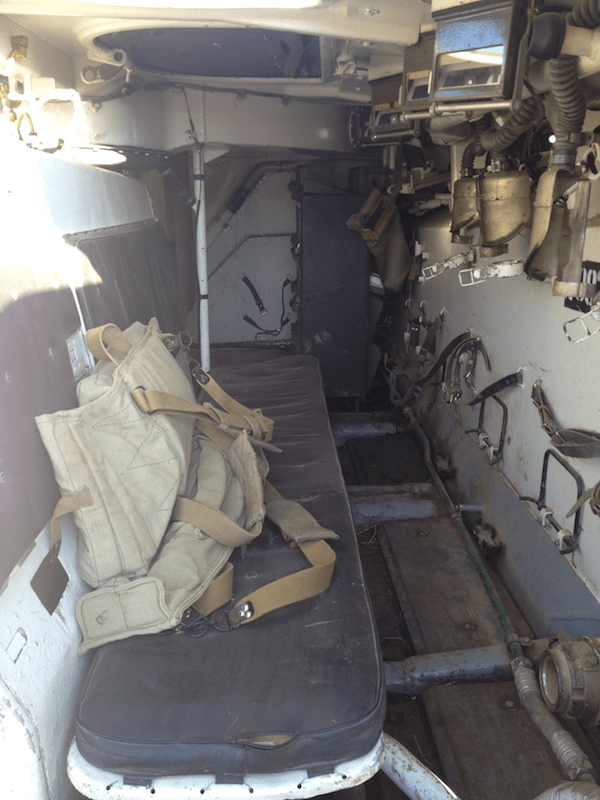

Padded bench on the right-hand side, looking towards the gunner’s position.


Cold War Kit. 098

Vision-blocks on the right-hand side.


Cold War Kit. 099

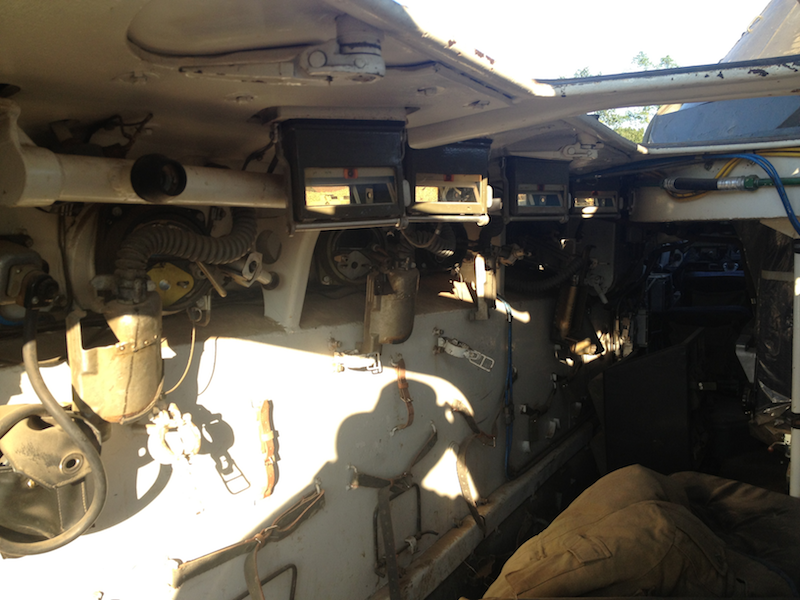

Vision-blocks and overhead hatches on the left-hand side.


Cold War Kit. 101

A D-shaped hatch near the turret.


Cold War Kit. 104

This BMP has had its 73mm gun removed. Now looks very similar to that of a BRDM-2 reconnaissance vehicle.


Cold War Kit. 105

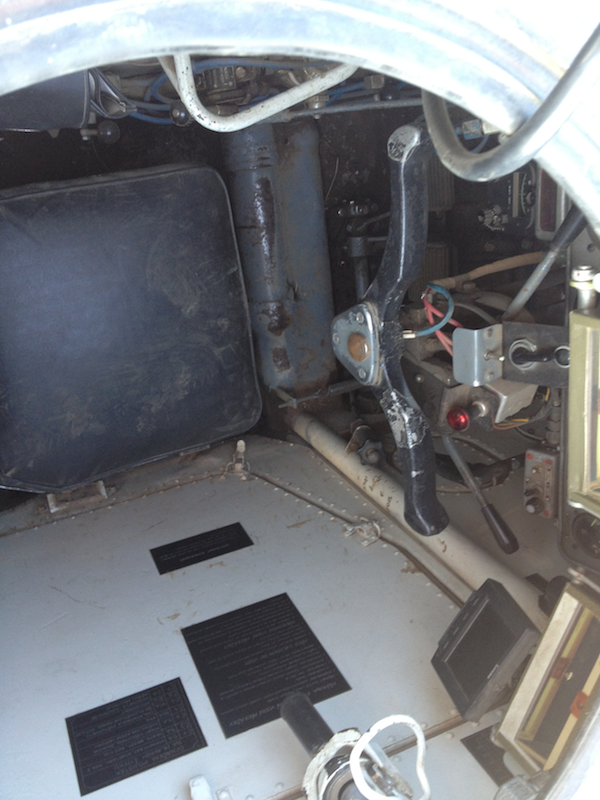

Looking down at the driver’s station,  front, left-hand side.


Cold War Kit. 106

Driver’s position and steering yoke in front of the commander.


Cold War Kit. 107

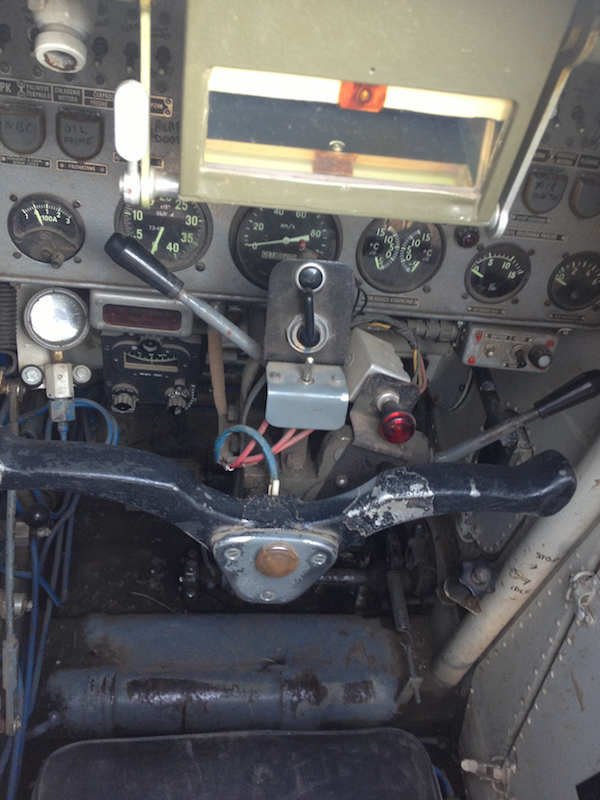

Drivers controls and vision-block.


Cold War Kit. 109

Looking towards the Commander’s area.


Commander’s area.


Cold War Kit. 111

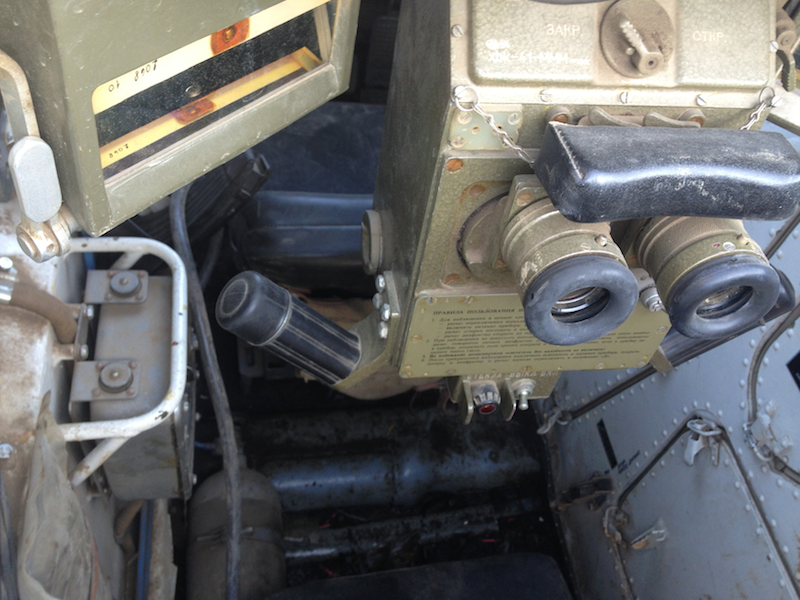

The driver has two periscope vision-blocks and a binocular vision device.


Cold War Kit. 112

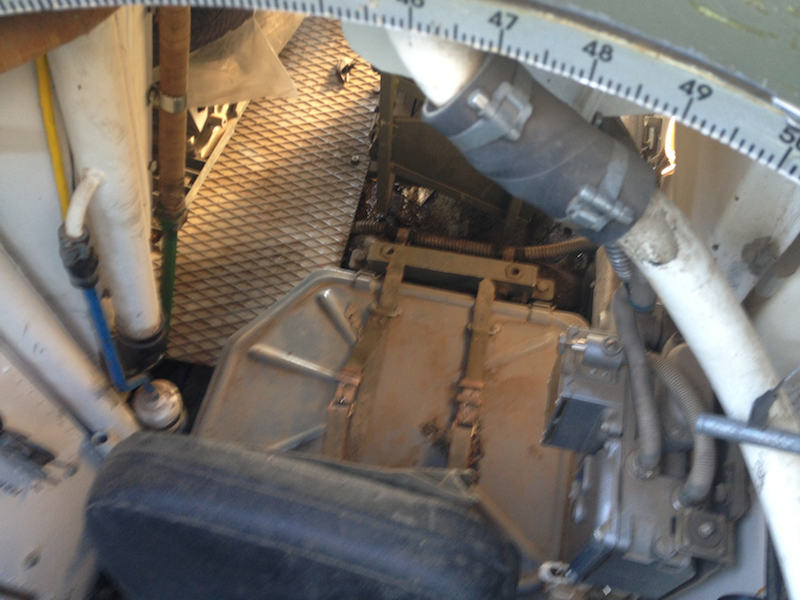

Looking back from the commander’s position.


Cold War Kit. 079 (2)

Commander’s position

Cold War Kit. 113

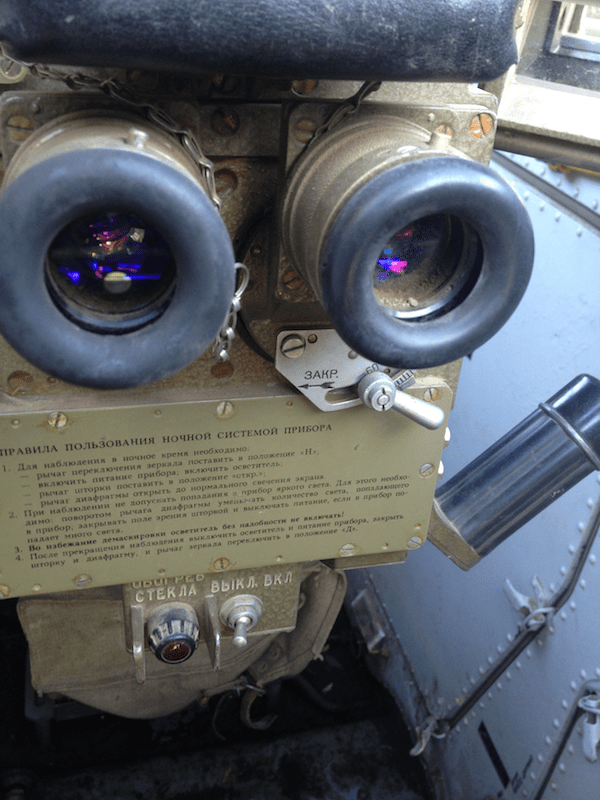

Driver’s binocular vision device.


Cold War Kit. 080 (1)

Driver’s hatch.

Cold War Kit. 115

The four D-shaped hatches can be seen open to the rear.


Cold War 11 087

BMP-1 showing the standard configuration of a 73mm gun and a Sagger anti-tank missile mounted on a rail above it..


Cold War Kit. 079 (1)

Rory, who had just purchased my Novel, The Red Effect, posing in front of my stand at the War & Peace show. He is wearing his Second World War Soviet uniform, carrying the iconic PPS machine gun.

i hope this has given you a further insight into what kit was around during the Cold War in the 80s.
