Tracked Rapier, a British Cold War surface-to-air missile launcher.  It is still in service today.


Harvey Black 079 (1)

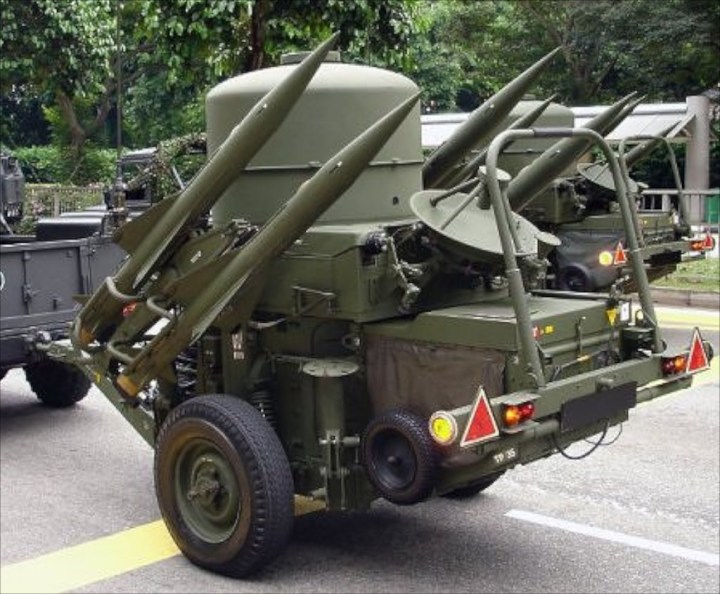

The Rapier SAM entered service in 1971 and eventually replaced most of the British Army and Royal Air Force SAM systems. The original systems came on wheeled launchers, towed by Land Rovers. There would be two vehicles, the Fire Unit Truck and the Detachment Support Vehicle.


Harvey Black 080

Development started on the Tracked version of the Rapier in 1978, deployed in 1983.


Harvey Black 081

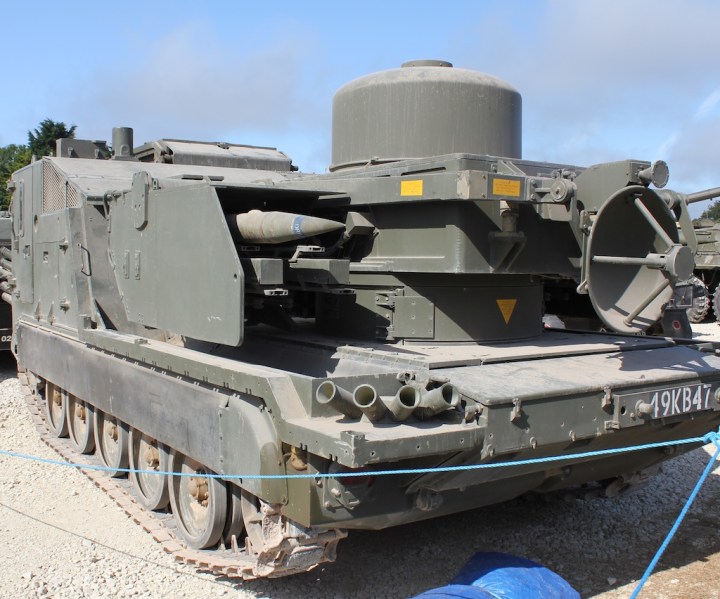

Capable of carrying four surface-to-air missiles on each launcher.


Harvey Black 082

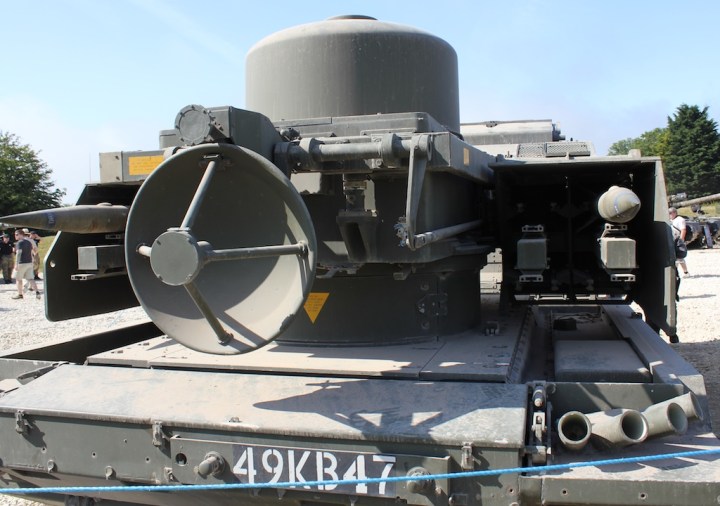

Parabolic antenna for sending guidance commands to the missiles.


Harvey Black 083

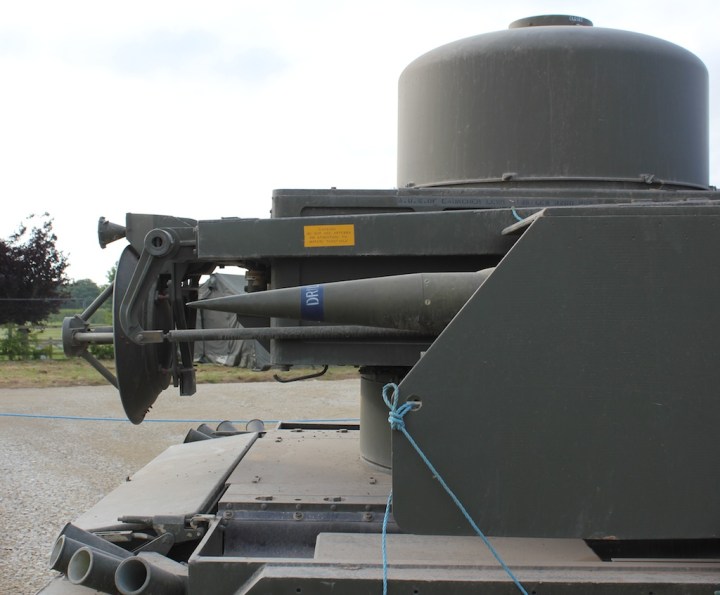

The missile has a fragmentation explosive close proximity warhead.


Harvey Black 084

The large cylindrical unit, containing the surveillance radar and Identification friend or foe (IFF) at the top.


Harvey Black 085

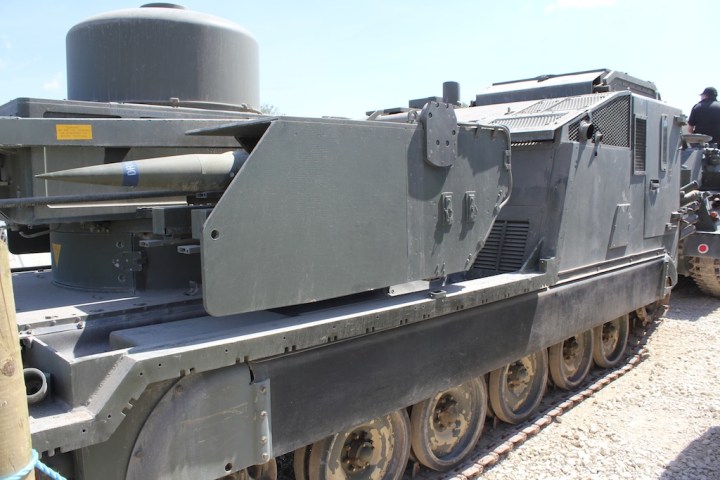

Mounted on an M548 chassis.


Harvey Black 086

The chassis is the cargo version of the well known M113 armoured personnel carrier.


Harvey Black 087

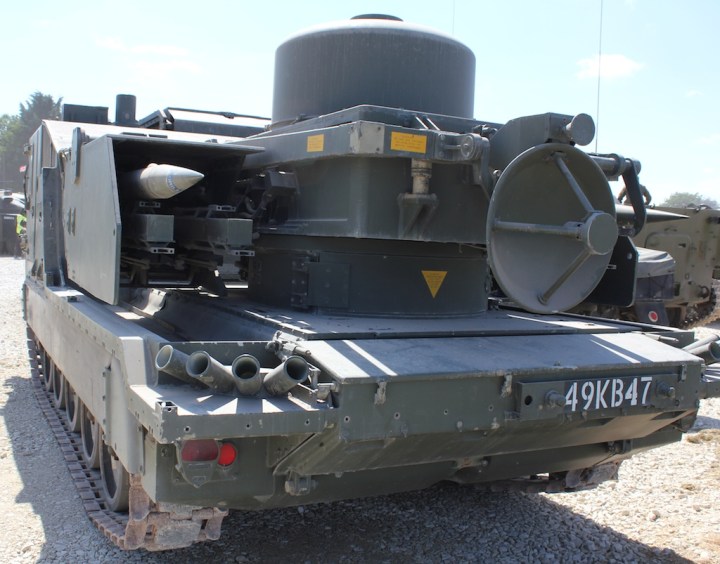

The lower part of the cylinder contains the guidance computer and radar transmitter and receiver electronics at bottom.


Harvey Black 088

The solid fuel rocket could power the missile to a speed of Mach 2.5.


Harvey Black 089

The Optical-Tracker would be operated from the left side of the crew cabin.


Harvey Black 090

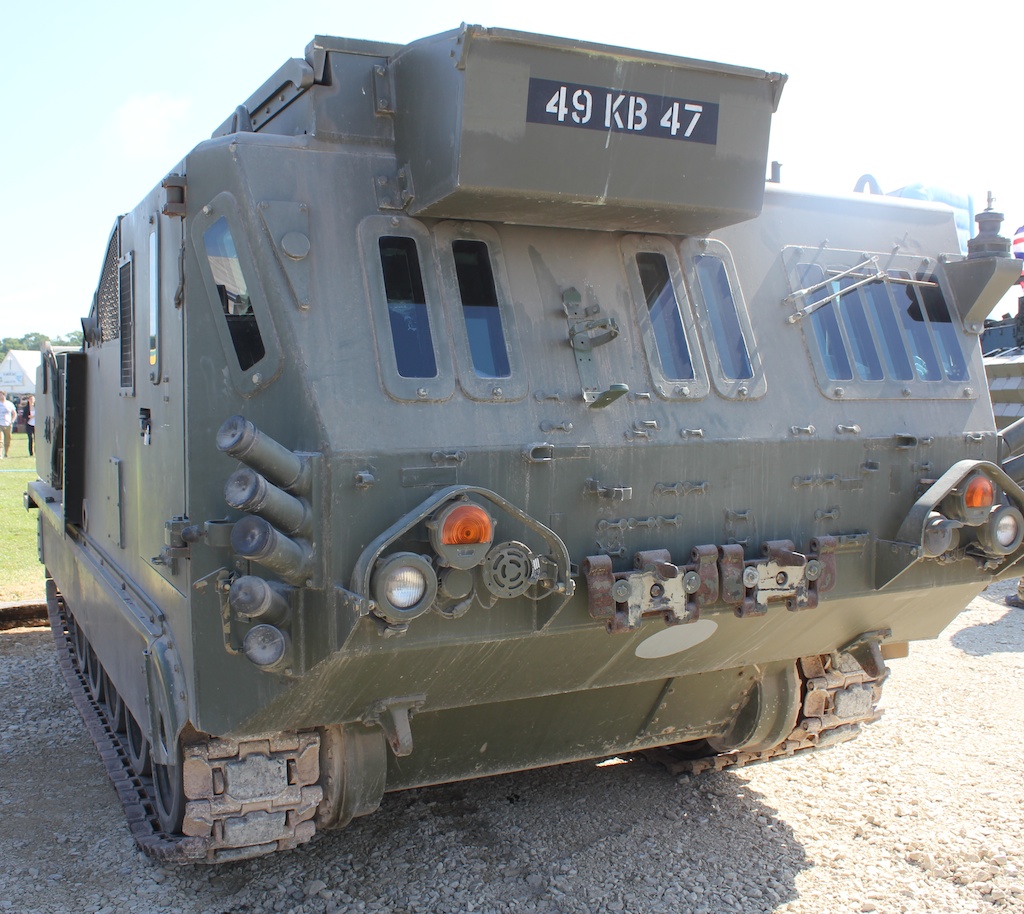

On the right of the crew cabin you would find the driver and tactical controller.


Harvey Black 092

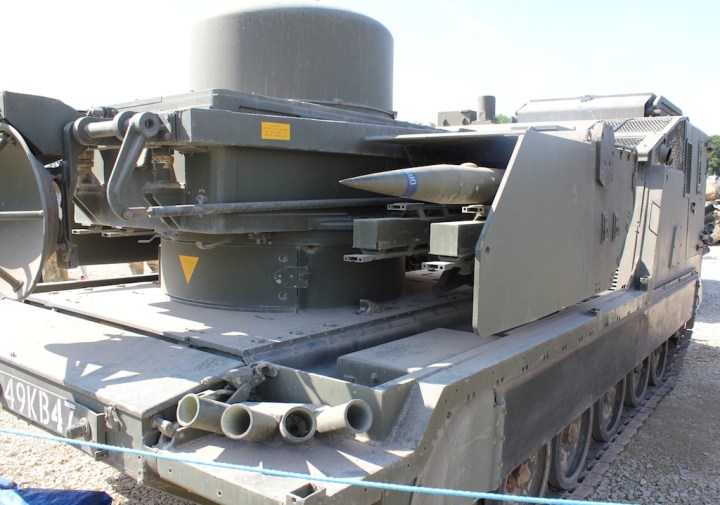

There were smoke-dischargers on each corner of the vehicle.


Harvey Black 093

The missile had a height ceiling of 3,000m.


Harvey Black 094

In the early 80s, 1 British Corps had 24 x Tracked Rapier and 24 x towed missile systems.


Harvey Black 095

During the Cold War, 1 British Corps and its respective divisions were very weak in respect to air defence.


Harvey Black 096

From movement to firing took only 30 seconds with the tracked Rapier, as opposed to the towed versions firing time of 15 minutes.
